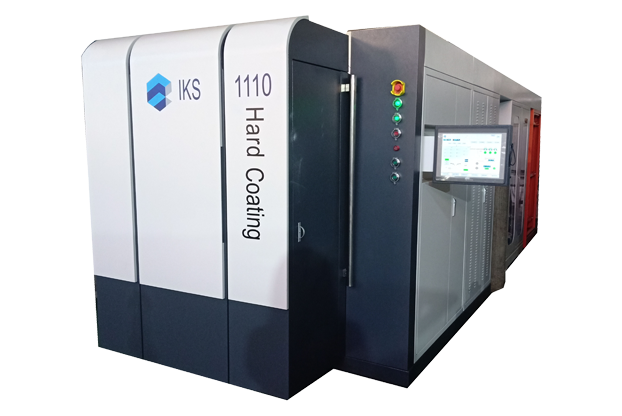

ZY-1110大弧離子鍍膜機

ZY-1110大弧離子鍍膜機是我公司自主研發的超硬膜離子鍍膜機，采用獨有的新型過濾弧源鍍膜技術、等離子體增強陽極輔助鍍膜技術，規劃了爐體內等離子體的路線和分布，增強了刻蝕效果，提高了離化率，使得靶材表面被均勻刻蝕，涂層表面更光滑致密，提升了涂層的結合力，確保了涂層厚度及涂層的均勻性。同時，新技術的應用提高了鍍膜效率，節約了能耗和運行成本。
產品詳情
  • 設備簡述/Equipment Brief

    　　ZY-1110大弧離子鍍膜機是我公司自主研發的超硬膜離子鍍膜機，采用獨有的新型過濾弧源鍍膜技術、等離子體增強陽極輔助鍍膜技術，規劃了爐體內等離子體的路線和分布，增強了刻蝕效果，提高了離化率，使得靶材表面被均勻刻蝕，涂層表面更光滑致密，提升了涂層的結合力，確保了涂層厚度及涂層的均勻性。同時，新技術的應用提高了鍍膜效率，節約了能耗和運行成本。

    　　ZY-1110 Big Arc ion vacuum coating machine is a super hard film ion coating machine, self-developed by IKS, adopted unique new filter arc source coating technology, plasma enhanced and anode assisted coating technology, the route and distribution of plasma inside of the furnace are planned, the ionization rate of the target material was enhanced, So that the surface of the target is etched uniformly, the coating surface is smooth and compact while the bonding force of the coating is optimized, ensure coating thickness and uniformity. Meanwhile, the application of new technology improves the efficiency of coating, saves energy and operation cost.

         設備參數/Equipment Parameters

    爐體尺寸Chamber Size

    Ф1180XH1050

    有效空間Effective Space

    Ф800XH650

    應用技術Applied Technology

    IET+ BIG ARC

    靶材數量Quantity of Target Material

    IET2+ARC9 xφ160

    標準涂層Standard Coating

    TiN, CrN, AlCrN, etc.

    其他復合涂層Other Composite Coating

    TiAlCrN, TiSiN,TiAlCN,etc.

    生產周期Production Cycle

    4-6小時/爐4-6hours/furnace

    外圍尺寸Overall Dimension

    L5800XW2100XH2100mm

    L4800XW3000XH2100

    使用范圍Rang of Application

    適用于滾刀，鉆頭，棒狀銑刀，微鉆，刀粒等。Hobs，drills，stick milling cutter, micro-drill, cutter grain, etc
