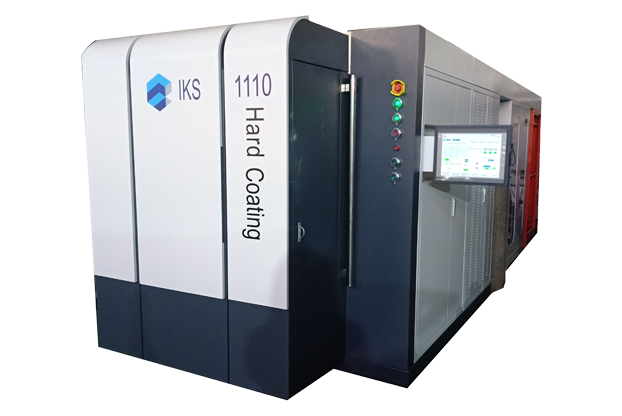

ZY-1110大弧離子鍍膜機
　　工具鍍/Tool Coating 標準機型/Standard Model ZY-1110大弧鍍膜機
　　Big Arc Ion Coating Machine

　　設備簡述/Equipment Brief

　　ZY-1110大弧離子鍍膜機是我公司自主研發的超硬膜離子鍍膜機，采用獨有的新型過濾弧源鍍膜技術、等離子體增強陽極輔助鍍膜技術，規劃了爐體內等離子體的路線和分布，增強了刻蝕效果，提高了離化率，使得靶材表面被均勻刻蝕，涂層表面更光滑致密，提升了涂層的結合力，確保了涂層厚度及涂層的均勻性。同時，新技術的應用提高了鍍膜效率，節約了能耗和運行成本。

　　ZY-1110 Big Arc ion vacuum coating machine is a super hard film ion coating machine, self-developed by IKS, adopted unique new filter arc source coating technology, plasma enhanced and anode assisted coating technology, the route and distribution of plasma inside of the furnace are planned, the ionization rate of the target material was enhanced, So that the surface of the target is etched uniformly, the coating surface is smooth and compact while the bonding force of the coating is optimized, ensure coating thickness and uniformity. Meanwhile, the application of new technology improves the efficiency of coating, saves energy and operation cost.

     設備參數/Equipment Parameters

爐體尺寸Chamber Size

Ф1180XH1050

有效空間Effective Space

Ф800XH650

應用技術Applied Technology

IET+ BIG ARC

靶材數量Quantity of Target Material

IET2+ARC9 xφ160

標準涂層Standard Coating

TiN, CrN, AlCrN, etc.

其他復合涂層Other Composite Coating

TiAlCrN, TiSiN,TiAlCN,etc.

生產周期Production Cycle

4-6小時/爐4-6hours/furnace

外圍尺寸Overall Dimension

L5800XW2100XH2100mm

L4800XW3000XH2100

使用范圍Rang of Application

適用于滾刀，鉆頭，棒狀銑刀，微鉆，刀粒等。Hobs，drills，stick milling cutter, micro-drill, cutter grain, etc
